NuukiaWorld project:
FBUS & MBUS adapters8. Pictures
Picture 8.1. Finished NuukiaWorld dual-mode adapter connected to a Nokia 6110. The adapter box is wired to a three-pin connector connected to a small socket in the headset connector. This allows disconnecting the adapter and so the headset can be still used normal way.

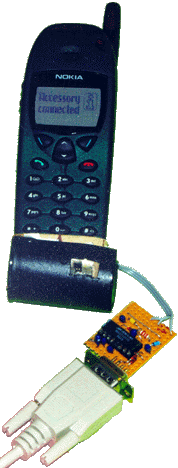

Picture 8.2. A prototype of the NuukiaWorld FBUS-only adapter replacing the original NDS cable. A temporary connector to Nokia 6110 has been made of cardboard and plastic box.
© Pat Suwalski. Published with permission.

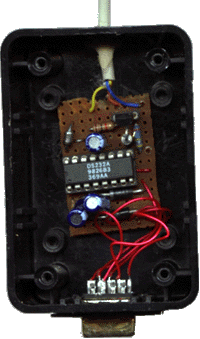

Picture 8.4. A NuukiaWorld dual-mode adapter built by Pat Suwalski.
Picture 8.3. A finished NuukiaWorld dual-mode adapter. The location of R3 has been changed after this.

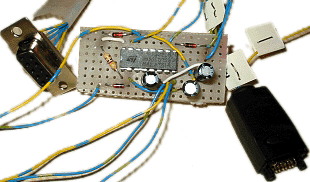

Picture 8.5. A NuukiaWorld MAX232 FBUS adapter built by Fabio Saitta. He use it successfully with Nokia 6310i and Oxigen.
© Fabio Saitta. Published with permission.
Picture 8.6. A NuukiaWorld dual-mode adapter in a box. The need for many phone connectors is eliminated by building a Nokia 6110 -7-pin DIN adapter cable. The adapter box has only an inexpensive 7-pin DIN socket.
Picture 8.7. The Nokia Data SuiteTM 2.0 monitor window while testing a NuukiaWorld FBUS-only adapter. If your operator supports this feature, you can also make data calls with a NuukiaWorld FBUS adapter as you can do with your original NDS cable.
Picture 8.9. A NuukiaWorld super-miniature FBUS/MBUS adapter cable with connector box opened. Please note the simple and professional look when the connector is closed.

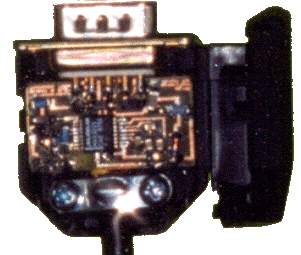

Picture 8.8. A prototype version of the super-miniature dual-mode adapter based on MAX3221CAE. There have been minor enhancements in the circuit board layout after this version.
© Copyright 1998, 1999, 2000, 2003 NuukiaWorld. All rights reserved. Republishing this document partially or completely is forbidden. Internet hyperlinks to the main page are allowed and such linking is encouraged. Please read the FAQ page carefully. You are doing everything at your own risk. See the WARNING! in the general information page.
The basic tests have been done with the Nokia Data SuiteTM 2.0 and Nokia Data SuiteTM 3.0, Nokia Logo Express, LogoManager demo version, a Nokia 5110, a Nokia 6110, a Nokia 6130 and a Nokia 6150.
13.10.2003
